| ブランド名: | Keysight |
| モデル番号: | N9048B |
| MOQ: | 1セット |
| 価格: | 交渉可能 |
| 配達時間: | 1～3営業日 |
| 支払条件: | T/T、ウェスタンユニオン |

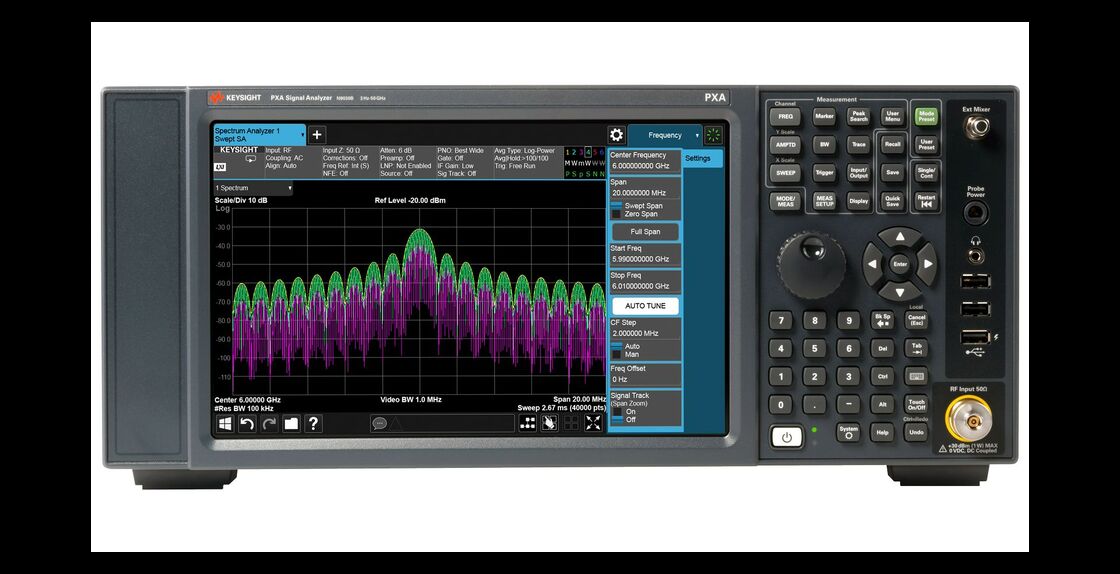

The Keysight N9030B PXA RF Signal Analyzer is a high-performance benchtop spectrum analyzer covering 2 Hz to 50 GHz (configurable frequency options available).
With multi-touch operation, Windows 10 OS, up to 1 GHz analysis bandwidth and 510 MHz real-time bandwidth, it is ideal for 5G NR, aerospace,
radar, and general RF testing applications. Optional upgrades include expanded memory, advanced demodulation, and dedicated test apps for flexible, scalable testing.
| Description | Specifications |
|---|---|
| Maximum Frequency | |
| Option 503 | 3.6 GHz |
| Option 508 | 8.4 GHz |
| Option 513 | 13.6 GHz |
| Option 526 | 26.5 GHz |
| Option 544 | 44 GHz |
| Option 550 | 50 GHz |
| Preamp Option P03 | 3.6 GHz |
| Preamp Option P08 | 8.4 GHz |
| Preamp Option P13 | 13.6 GHz |
| Preamp Option P26 | 26.5 GHz |
| Preamp Option P44 | 44 GHz |
| Preamp Option P50 | 50 GHz |
| Minimum Frequency | |
| Preamp | AC Coupleda DC Coupled |
| Off | 10 MHz 2 Hz |
| On | 10 MHz 9 kHz |
| Description | Specifications | Supplemental Information | |
|---|---|---|---|
| Band | Harmonic Mixing Mode |
LO Multiple (Nb) | Band Overlapsc |
| 0 (2 Hz to 3.6 GHz)d | 1− | 1 | Options 503, 508, 513, 526, 544, 550 |
| 1 (3.5 to 8.4 GHz) | 1− | 1 | Options 508, 513, 526, 544, 550 |
| 2 (8.3 to 13.6 GHz | 1− | 2 | Options 513, 526, 544, 550 |
| 3 (13.5 to 17.1 GHz) | 2− | 2 | Options 526, 544, 550 |
| 4 (17.0 to 26.5 GHz) | 2− | 4 | Options 526, 544, 550 |
| 5 (26.4 to 34.5 GHz | 2− | 4 | Options 544, 550 |
| 6 (34.4 to 50 GHz | 4− | 8 | Options 544, 550 |
