Keysight EDU36311A Smart Bench Essentials DC Power Supply 6V, 80W USB
| ブランド名: | Keysight (Agilent) |
| モデル番号: | EDU36311A |
| MOQ: | 1セット |
| 価格: | 交渉可能 |
| 支払条件: | T/T |
Keysight DC power supply 6V 80W
,variable power supply with USB
,bench power supply with warranty

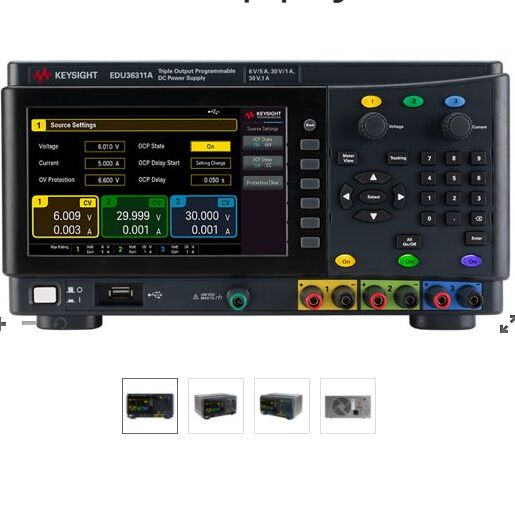

Keysight EDU36311A Smart Bench Essentials DC Power Supply
Description of Keysight EDU36311A
The Keysight Smart Bench Essentials (SBE) Series is a set of four unique instruments with PathWave BenchVue application software to connect, control, and capture measurement data.
The EDU36311A triple-output power supply has a compact design to fit anywhere on your bench. Monitor all your outputs simultaneously from any angle with its 7-inch color display. Each output is independent — connect your outputs in a series for higher voltage, in parallel for additional current, or stack to provide 0 to ±30 V. A sequencing feature enables and disables outputs in a set pattern. You can now activate the control logic before applying power to the rest of your device.
- Get Keysight's PathWave BenchVue power supply software for remote control and data logging
- Achieve ripple and noise at <1mVrms for low noise output
- Experience accurate current and voltage control with excellent programming and readback
- Measure with confidence using exceptional line and load regulation for a stable output
- Save configurations for repeat test setups with the USB flash drive
- Simplify connectivity with USB and LAN (LXI Core)
Highlights of N8737A DC Power Supply
The Keysight Technologies, Inc. N8700 series system DC power supplies give you just the right performance — at just the right price — in a compact (2 U) package. This family of affordable 3300 W and 5000 W single-output programmable DC power supplies consists of 21 models for simple DC power applications. They provide stable output power, built-in voltage and current measurement, and output voltage and current from 8 V to 600 V and 5.5 A to 400 A. These economical supplies offer many system-ready features like multiple standard I/O interfaces to simplify and accelerate test-system development for R&D, design validation, and manufacturing engineers in the aerospace/defense, automotive, component, and communications industries.
Order Information
E36311A 80 W DC power supply, triple-output, 6 V, 5 A and ±25 V, 1 A, USB
E36312A 80 W DC power supply, triple-output, 6 V, 5 A and 2 x 25 V, 1 A, LAN, USB
E36313A 160 W DC power supply, triple-output, 6 V, 10 A and 2 x 25 V, 2 A, LAN, USB
List of Options for EDU36311A
|
0E3 |
230 VAC ±10% |
| 0EM |
115 VAC ±10%
|
|
0E9 |
100 VAC ±10%
|
|
RBP |
Recessed binding posts, not upgradable
|
|
GPB |
GPIB module
|
|
UK6 |
Commercial calibration with test result data
|
|
SEC |
NISPOM and file security
|
|
BV0003B |
Power Supply Control & Automation |
|
Rackmount kit |
|
|
1CM116A |
Rack Mount Flange Kit with one flange bracket,one half-module bracket
|
|
1CM104A |
Rack Mount Flange Kit with two flange brackets
|
|
1CM105A |
Rack Mount Flange Kit without handles and two flange brackets |
|
1CN107A |
Handle Kit with two front handles |
|
1CP108A |
Rack Mount Flange and Handle Kit with two brackets and front handles |
