| ブランド名: | Yokogawa |
| モデル番号: | WT5000 |
| MOQ: | 1 set |
| 価格: | 交渉可能 |
| 支払条件: | T/T |

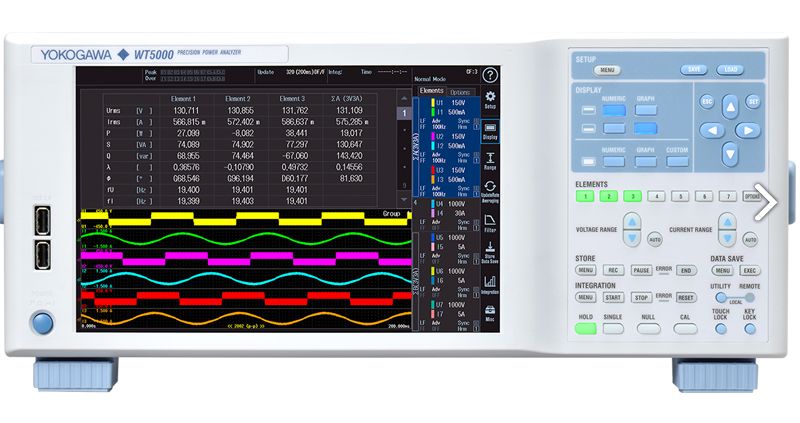

The WT5000 is the world’s most accurate precision power analyzer with a basic power accuracy of ±0.03%. Its accuracy specifications are guaranteed from 1% to 130% of the selected voltage and current ranges. With minimum influence of low-power factor (0.02% of apparent power) the unit is also accurate at large phase shifts and frequencies.
• AC power accuracy: 0.01% of reading + 0.02% of range
• DC power accuracy: 0.02% of reading + 0.05% of range
• 10 MS/s 18 bit ADC
Features of Yokogawa WT5000:
Reliable Today, Ready for Tomorrow of WT5000
Make measurements you can trust with a guaranteed accuracy of *0.03%
10MS/s, 1MHz power bandwidth, 18 bit resolution enabled by Yokogawa isoPRO™ fiber optic isolation technology
Simultaneously analyze 7 phases with one chassis, producing over 1000 power parameters real-time
Precision current measurement guaranteed by innovative symmetric coaxial shunt design
*basic power accuracy
Stream raw waveform data up to 22 items at a rate of up to 2 MS/s for detailed waveform analysis
Innovate with Precision, Flexibility and Confidence of WT5000
List of Options of WT5000
| /M1 | 32GB Built-in Memory |
| /MTR1 | Motor Evaluation 1 |
| /DA20* | 20 CH D/A Output |
| /MTR2 | Motor Evalualion 2 |
| /DS | Data streaming |
| /G7 | lEC Harmonics/Flicker Measurement |
| 760901 | 30 A High Accuracy Element |
| 760902 | 5 A High Accuracy Element |
| 760903 | Current Sensor Element |
|
|
